Selecting the perfect glass for a building is a major decision. Homeowners, architects, and contractors often ask: which is superior, Low-E Insulated Glass Units (IGU) or standard Double Glazing? Both provide better insulation and quieter spaces. Yet, they have distinct differences. At GLASVUE, we focus on top-notch, customizable glazing options that elevate structures globally. This article breaks down Low-E IGU and Double Glazing, evaluates their performance, and highlights how GLASVUE’s custom solutions can enhance your project.
Understanding Low-E IGU and Double Glazing
To pick the best glass, you need to know what each option offers. Let’s dive into the basics of these two popular glazing types.
What is Low-E IGU?
A Low-E IGU, or Low Emissivity Insulated Glass Unit, is made of two or more glass sheets separated by spacers, with the space between filled with air or gases like argon or krypton. The key feature is the Low-E coating, a very thin, clear layer often containing metals like silver. This coating reflects infrared heat but lets visible light pass through, keeping indoor spaces warm in winter and cool in summer by blocking extra solar heat.
Types of Low-E Coatings
Low-E coatings mainly fall into two groups: online and offline. The online version, typically single-silver, gets put on straight during the glass-making stage, resulting in a solid, tough surface that’s great for basic single-sheet or toughened glass in stuff like windows, doors, or big wall panels.
Offline coatings have more options, from single-silver up to double- or triple-silver layers. Those with double or triple silver do a better job at keeping heat in and saving energy overall, but they call for trickier steps in handling and layering.
Since we’re zeroing in on Insulated Glass Units (IGUs) right now, offline Low-E layers really pay off in these setups. Pairing them with IGUs ramps up the heat-blocking power, cuts back on how much energy you use, and lines up well with the tough standards for sustainable, eco-conscious construction.

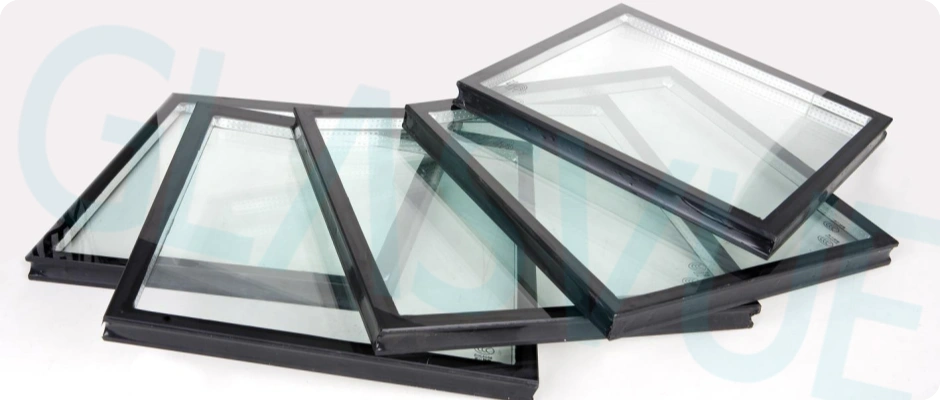

What is Double Glazing?
Double Glazing, or Double-Pane glass, is a simpler option. It uses two glass panes sealed with a spacer. The space is filled with air or gas. This creates a barrier that slows heat loss and reduces condensation compared to single-pane windows.
Developed decades ago, Double Glazing is common in energy-saving buildings. It works by trapping air to limit heat transfer. However, it lacks the special coating of Low-E IGU. GLASVUE offers improved Double Glazing options. They’re budget-friendly and reliable for projects that don’t need premium features.

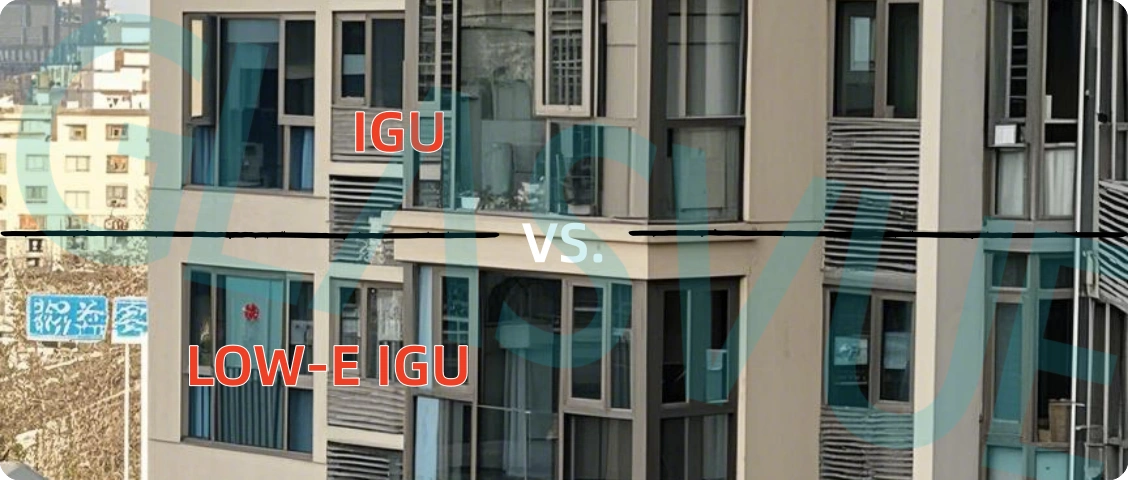

Comparing Performance Metrics of Low-E IGU and Double Glazing
To choose wisely, look at performance numbers. We’ll compare Low-E IGU and Double Glazing using four metrics: U-Value, Solar Heat Gain Coefficient (SHGC), Visible Light Transmittance (VLT), and UV Protection. These are set by groups like the National Fenestration Rating Council (NFRC). They help meet building codes.
U-Value
U-Value shows how much heat passes through a window. A lower number means better insulation. Double Glazing usually has a U-Value of 2.5 to 3.0 W/m²K. This depends on the spacer and gas. It works well in mild climates.
Low-E IGU does better. Its U-Value can be as low as 1.0 to 1.5 W/m²K. The coating stops heat from escaping. In cold winters, it keeps warmth inside. This can cut heating costs by 20-30%. GLASVUE’s Low-E IGUs use multi-layer coatings. They lower U-Values even more, saving energy in places like Northern Europe or Canada.
SHGC
The Solar Heat Gain Coefficient (SHGC) shows how much solar energy slips into a building through its glass. It’s measured on a scale from 0 to 1, where a lower number means the glass blocks more heat, making Low-E glass a solid pick for hotter regions. Regular double-glazed IGUs usually sit at an SHGC of about 0.6 to 0.7, letting in a fair bit of heat. In contrast, Low-E IGUs with advanced coatings can drop that to 0.25 to 0.4, cutting down solar heat and slashing cooling bills. For instance, GLASVUE’s Low-E solutions have helped folks in warm climates save around 25% on energy costs, though savings depend on the project and local weather.
VLT
Visible Light Transmittance (VLT) measures how much natural light gets through the glass. A higher VLT means brighter interiors with more daylight. Standard double-glazed IGUs typically offer a VLT of 70-80%, giving plenty of natural light. Low-E IGUs, on the other hand, range from 60-75%. Even with the coating, the drop in brightness is barely noticeable, keeping rooms well-lit. GLASVUE provides a range of Low-E coating options, letting customers pick high, medium, or low light transmission based on their needs. This way, the glass keeps solar heat in check while ensuring great daylight, stabilizing indoor temperatures. This balance helps GLASVUE’s cutting-edge Low-E products create energy-efficient, comfortable spaces in buildings worldwide.
UV Protection
Ultraviolet (UV) rays can fade furniture and floors. Double Glazing blocks about 30-50% of UV rays. It offers basic protection.
Low-E IGU is much better. It blocks 95-99% of UV rays due to its metal coating. This is ideal for museums, stores, or homes with valuable items. GLASVUE’s Low-E coatings shine in sunny areas like the Middle East. They protect interiors from fading.
Low-E IGU beats Double Glazing in most metrics. It’s more energy-efficient and protective. But Double Glazing is still a solid, cheaper choice for simpler needs.
Tailoring Glass Solutions to Your Project Needs
Every project is unique. Climate, budget, and style matter. GLASVUE customizes solutions for all kinds of buildings, from old homes to modern towers.
Standard Insulating Glass
Standard Insulating Glass, like Double Glazing, is great for basic projects. It’s affordable and easy to install. It cuts drafts and noise. This suits home upgrades in mild climates. GLASVUE’s standard glass comes with strong seals and optional tints for privacy.
Low-E Insulating Glass
Low-E Insulating Glass steps it up. It combines Double Glazing’s insulation with heat-reflecting coatings. It’s perfect for varied climates. GLASVUE offers different Low-E types. Some keep heat in, others block it out. We tailor them to your project’s needs.
Triple-Glazed Low-E IGU
For top performance, try Triple-Glazed Low-E IGU. It uses three panes. This drops U-Values below 1.0 W/m²K. It also reduces noise. It’s ideal for cold areas or loud cities. GLASVUE’s triple-glazed units are used in green projects in Scandinavia. They’re tough and valuable.
Why Choose GLASVUE’s Advanced Glass Solutions
GLASVUE stands out for quality and flexibility. Our innovative glass products meet your project’s needs.
Multiple Coating Options Available, Customize the Most Suitable Glass Parameters
We offer many coating choices, like single-silver or triple-silver Low-E. You can adjust SHGC, VLT, and U-Values. This fits specific needs, like UV protection for galleries or low SHGC for deserts. GLASVUE’s engineers work with you. We ensure your glass meets standards like LEED and ENERGY STAR.
Customizable Double-Pane Configurations
Our Double-Pane glass is flexible. Add laminated glass for safety or soundproof layers for quiet. We also offer smart glass that changes tint. This works for homes, offices, or big buildings. GLASVUE tests every product for strength and reliability.
Proven Expertise in Global Projects
With years of experience, GLASVUE has supplied glass for over 500 projects worldwide. Think high-rises in Dubai, green offices in Singapore, and homes in the US. We deliver on time and support you after installation. Clients trust us for big, complex jobs.
Connect with GLASVUE for Tailored Glass Solutions
Ready to improve your project? GLASVUE’s team is here to help.
Comprehensive Consultation Services
We offer detailed advice. This includes site checks, performance tests, and cost reviews. Using high-tech tools, we show how Low-E IGU or Double Glazing will work for you. This helps you pick the best option.
Contact Us for Your Next Project
Don’t settle for standard glass. Choose GLASVUE for custom solutions. Visit our website or email for a free consultation. Let’s make your project efficient and sustainable.
FAQs
Q:What’s the key difference between Low-E IGU and Double Glazing?
Low-E IGU has a special coating. It reflects heat and UV rays. This makes it more energy-efficient than Double Glazing, which uses an air gap for insulation.
Q:Is Low-E IGU worth the higher price over Double Glazing?
Yes, especially in extreme weather. Low-E IGU cuts energy costs by 20-30%. Its low U-Value and SHGC save money over time, making it a smart choice.
Q:Can I customize Low-E glass for my project?
Definitely. GLASVUE offers various coatings and setups. We adjust SHGC, VLT, and UV protection to match your project’s needs, ensuring top results.
