In today’s changing world of building designs, glass roof panels have become a key part. They mix beauty with real use. These smart setups let in plenty of natural light. They also help create buildings that care about the planet. But remember, not every kind of glass works well for roofs. Picking the best one, like energy-saving types with low-emissivity (Low-E) layers or ones that control sun heat, matters a lot. It helps get the best results in keeping warm, lasting long, and saving power.
At GLASVUE, we focus on top-quality glass for building projects. We make energy-saving glass roof panels just right for modern needs. Think big business halls or home sunrooms. In this full guide, we will look at the main jobs of glass roof panels. We will dig into new tech. And we will show off GLASVUE’s best items and help. If you are a designer, a worker, or just fixing up your house, knowing what makes some glasses better for roofs will help you choose wisely. It can make your space more comfy and cheap to run.
Core Functions of Glass Roof Panels in Modern Architecture
Glass roof panels do many jobs in buildings now. They go well with green building ideas. This helps people feel better, work harder, and take care of the earth. By focusing on main traits, these panels keep buildings strong in all kinds of weather. They also cut down on running costs.

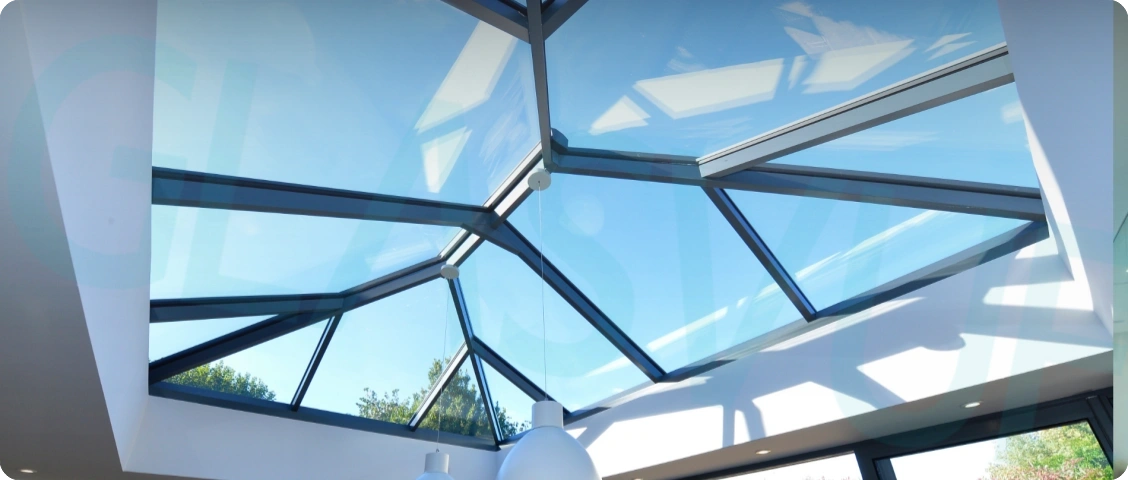

Daylighting and Visual Transparency
People love glass roof panels for bringing in real sunlight. This cuts the need for fake lights. It also links inside to outside. Clear glass lets through up to 90% of light you can see. It makes lively, open spots that lift moods and spark ideas. In work places or shops, this clear view can bring more people in. It can make workers happier too.
But getting this without too much shine or too much heat needs careful work. GLASVUE’s options mix light spread with sharpness. So, your glass roof lights up the place. And it makes people feel good.
Waterproofing and Structural Safety

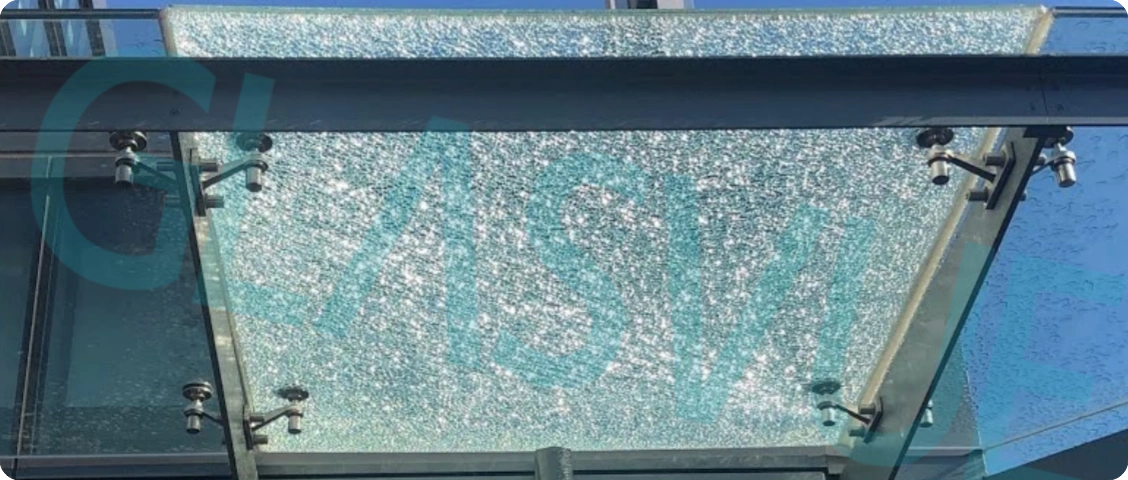

These panels face rain, wind, and hits from stuff. Good waterproof tricks, like sealed edges on layered units, stop water from getting in. They stop wet spots inside too. Safety for the build is super important. Toughened or layered glass breaks into tiny, dull bits. Not sharp ones. It follows strict rules for safety.
GLASVUE puts these first. We offer panels that handle bad weather well. They keep their good looks. This mix of no leaks and strong build makes our glass great for busy spots or shake-prone areas. You can count on it.
Thermal and Acoustic Insulation Needs
New buildings need glass roofs that block heat changes and city noise. Good heat block stops warmth from leaving in cold times. It stops it from coming in during hot days. This cuts power use for air systems right away. Sound block is key in loud places too. Rates under 35 dB make quiet spots.
Our layered glass units use many levels and safe gas inside. They get heat loss rates as low as 0.25 W/m²K. This joins heat smarts with top noise cut. It makes calm, power-wise areas.
UV Protection and Weather Resistance
Long sun time can make colors fade on stuff inside. It can hurt health too. But UV-stop glass keeps out 99% of bad rays. It keeps the views nice. Weather tough makes it last against rust, ice, and sun wear. Layers stop yellow over years.
GLASVUE’s strong mixes shine here. They give roofs that get old nicely. They guard the build’s life and people’s health. That’s what counts most.
Introduction to Energy-Efficient Glass Roof Panels
With green living as a must now, energy-saving glass roof panels stand out. They help cut harm to the air. These setups make energy flow better. They fit world rules like LEED badges and zero-waste aims.
What is an Energy-Efficient Glass Roof System?
An energy-saving glass roof setup is a full group of glass, frames, and layers. It aims to use less power. Unlike plain flat glass, these have many-job layers. They handle heat, light, and sound. Good points include lower bills—up to 30% less on cool air. And better air inside.
For designers, this means flexible plans that fit sun power tricks. Roofs turn into helpers for how the building works.
Advanced Glass Technologies in Roofs (Low-E, Solar Control)
Low-E layers go on with special air pulls. They send back heat rays but let light through. This changes roof smarts big time. Sun control glasses use pick tints or shiny sides. They block too much sun heat down to 0.25.
GLASVUE mixes these in smooth. We offer roofs that act like smart walls—see-through but tough on waste.
Key Mechanisms for Energy Savings with GLASVUE Glass Roof Panels
GLASVUE’s glass roof panels use fresh know-how to save real power. They make them a good buy for smart plans. By fixing heat move, sun ways, and light handle, our panels cut costs to run. They don’t hurt the look.
Superior Thermal Insulation Through Low-E Coatings
Low-E layers on GLASVUE panels make a heat wall. They hold warmth in during chill. They push it out in heat. This gives a middle U-value under 1.8 W/(m²·K). Way better than old glass. In true spots, like a 10,000 sq ft open hall, it can cut warm-up bills by 25%.
Effective Solar Heat Gain Reduction
Sun heat build is a big cause of too hot insides. But GLASVUE’s sun tricks stop it early. Our panels hit sun heat rates as low as 0.22. They use change tints and shiny middles. This stops the hot box feel. It cools rooms on its own. It makes air systems last longer too. You get money back in 3-5 years.
With smart shade add-ons, these fit day sun changes. They make power use best in up-and-down weather.
Enhanced UV Protection and Natural Light Optimization
GLASVUE panels block UVA/UVB by 99.9%. They save inside colors from fade. Our pick-through tech gives 70% see light. No UV sneak in. It mixes health plus nice looks.
This full way turns glass roofs into health helpers. It boosts work in green-badge spots.
Spotlight on GLASVUE’s Energy-Efficient Glass Products for Roofs
GLASVUE’s line is picked for roof wins. It shows new ideas, safe, and green care. Each can change to fit plan needs. So, perfect match for many uses.
Double & Triple Silver Low-E Insulated Glass for Optimal Insulation
Our double-silver and triple-silver Low-E insulated glass units can be filled with inert gas and optionally fitted with warm-edge spacers to replace traditional aluminum spacers, further enhancing sealing performance and energy efficiency.
The triple-silver variant achieves a U-value as low as 1.54 W/m²·K, delivering outstanding thermal insulation properties that make it particularly well-suited for cold climates or high-rise buildings.
In practical applications, such as large-scale retail mall roofs or facade systems, it significantly reduces energy consumption, maintains comfortable indoor temperatures, and delivers superior energy-saving outcomes.
Laminated Insulated Low-E Glass: Energy-Saving, Soundproofing, Safety – All in One
This glass integrates a laminated safety glass structure with Low-E energy-saving technology, offering a comprehensive solution that combines energy efficiency, sound insulation, and safety.
The interlayer film provides exceptional impact resistance (capable of withstanding up to 10,000 J/m of impact), achieves a sound transmission class (STC) rating of 40+, and features a solar heat gain coefficient (SHGC) below 0.30, effectively reducing cooling energy consumption by approximately 20%.
It is particularly well-suited for urban building roofs or exterior wall applications, such as in schools and hospitals, where it significantly mitigates noise interference while creating quiet, comfortable, energy-efficient, and environmentally friendly spaces.

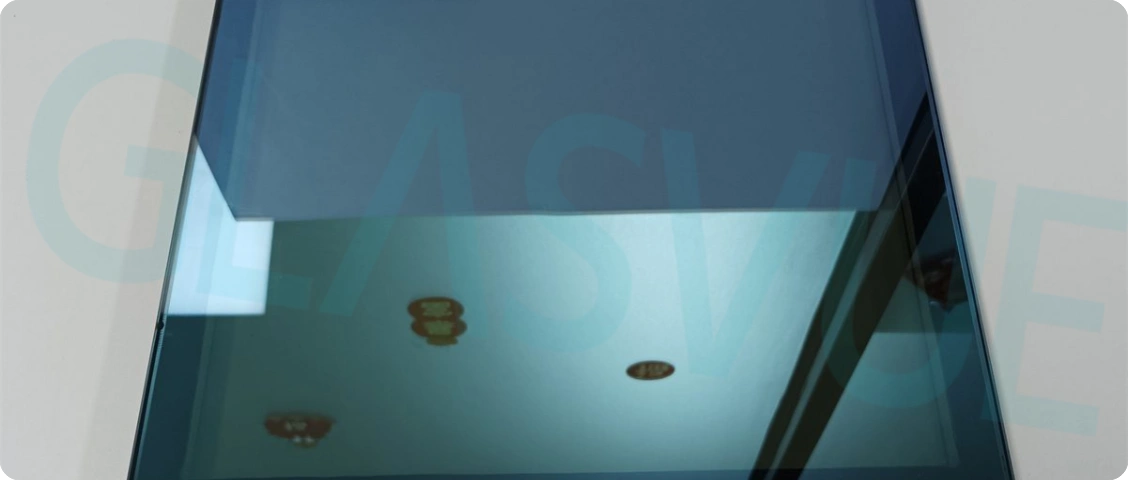

Reflective Solar Control Glass for Superior Heat Rejection
Designed specifically for regions with intense solar exposure, our heat-reflective glass utilizes metallic coating technology to achieve an exterior reflectivity of up to 60%, effectively blocking solar radiation heat transfer and minimizing indoor heat gain. With a solar heat gain coefficient (SHGC) as low as 0.18, it is ideal for skylights, sunshades, and other high-exposure applications.
The glass combines a modern mirror-like aesthetic with superior energy efficiency, fulfilling the demands of green building practices and sustainable design.
GLASVUE’s Production and Supply Capabilities
At GLASVUE, we stand by our items with top make shops. This means trust from plan to put-in. Our new plants show we care about good and big size.
Fully Automated Processing Lines Covering Tempering, Lamination, Insulating, Coating, Bending, and More
Our automated production line encompasses the core processes of glass fabrication, from 650°C tempering to precision lamination and insulated glazing assembly.
End-to-end quality control guarantees a 99.9% yield rate, with streamlined production cycles, rigorous inspection protocols, and a highly trained professional team.
Annual Capacity Exceeds 500,000㎡ of Architectural Glass, Exported to 70+ Countries
With years of hands-on export experience, we’re intimately familiar with every step of international logistics. This allows us to craft efficient, dependable shipping solutions tailored for our clients, ensuring your orders arrive right on schedule—every time.
Our annual production capacity tops 500,000 square meters, serving customers across the globe, from soaring skyscrapers in the US to stunning coastal residences in Australia.
Thanks to our scalable manufacturing processes, we deliver competitive pricing without ever compromising on the consistent quality you can count on.
Compliant with US, Australian, and European Standards
All GLASVUE items follow ASTM (US), AS/NZS (Aussie), and EN (Euro) rules. Like IGCC for block glass and ANSI Z97.1 for safe see. Outside checks from SGCC and CE tags make sure. Clients rest easy in rule lands.
We test in real storms. Pass every time. That’s our word.
Professional Glass Services Provided by GLASVUE
More than items, GLASVUE gives pro help. To make your plan smooth.
Technical Selection and Structural Design Consultation
Our pros team up on pick stuff. We use build sims to best glass for weight hold, wind fight, and looks. From sun heat math to heat shapes, we match rules and dreams.
We talk step by step. Share drawings. Fix fast. Your roof fits just right.
Custom Sample and Project Prototyping Support
We make special tests—up to 1m² mock-ups. Checked in top labs for true checks. This back-and-forth speeds okay and sharpens plans. Less shock on site.
See it work before big spend. Smart way.
Contact GLASVUE for Expert Services and Solutions
Want to lift your next plan with better glass roof panels? GLASVUE’s group is ready to team up. We bring right-fit fixes that mix new with easy. Hit us up now on the site or email. Set a talk time. Let’s make a light, cheap-to-run tomorrow hand in hand.
FAQs
Q: What makes Low-E glass ideal for glass roof panels?
A: Low-E glass features a thin metallic coating that reflects heat while allowing light transmission, reducing energy costs by up to 30% and preventing overheating or heat loss in roof applications.
Q: How does GLASVUE ensure the safety of its laminated glass roofs?
A: Our laminated insulated Low-E glass uses PVB interlayers for impact resistance, meeting hurricane standards and shattering safely, combined with tempered edges for enhanced structural integrity.
Q: Can GLASVUE‘s glass roof panels be customized for curved designs?
A: Yes, our automated bending lines produce precisely curved panels up to 6m radii, fully compatible with Low-E coatings and insulation for seamless integration into architectural curves.
