Shatterproof glass is a very important component of safety glass, offering tough, reliable protection for homes, offices, and commercial buildings. This article explores what makes shatterproof glass special, from its strength and safety features to its real-world uses. Learn about the various structures of shattering glass and their other properties, such as noise reduction and UV blocking capabilities. Finally, let’s go into Glasvue together and see how we meet global standards while keeping style in mind
What Is Shatterproof Glass?
Definition and Core Purpose
Shatterproof glass is a one-of-a-kind safety glass made to withstand impacts and keep people safe if it does break. Its big job is to make things safer. It does this by taking hits without breaking or staying in one piece if it shatters. This glass is super important in everyday spots and risky places. It keeps people and their stuff out of harm’s way.
Tempered Glass – Strength Through Thermal Processing
Tempered glass, sometimes called toughened glass, comes from heating glass to a really hot point and then cooling it down fast. This trick, called heat-quenching, Make a stress layer exist on its surface. It makes the glass way stronger and better at dealing with heat changes. If it breaks, it splits into tiny, rounded bits. Those bits are less likely to hurt anyone. That’s why tempered glass It is also a type of shatterproof glass.
Laminated Glass – Safety Through Layered Bonding
Laminated glass is put together by gluing two or more glass sheets with a strong middle layer, like PVB (polyvinyl butyral) or SGP (SentryGlas Plus). This layer is solid and holds tight. Even if the glass cracks, it sticks together. This keeps sharp pieces from flying around and causing injuries or messes.
Why It Matters in Architecture and Design
Preventing Injury from Breakage
Shatterproof glass is really good at keeping people safe when it breaks. Tempered glass turns into small, dull chunks when it shatters. These chunks cut down the chance of getting hurt. Laminated glass traps broken bits in its middle layer. This stops sharp shards from flying out and causing trouble.
Meeting Building Safety Codes Globally
Lots of places have strict rules that say you need shatterproof glass in things like walls, railings, skylights, and doors. These rules make sure people stay safe during accidents or big events, like storms or earthquakes.
Types of Shatterproof Glass

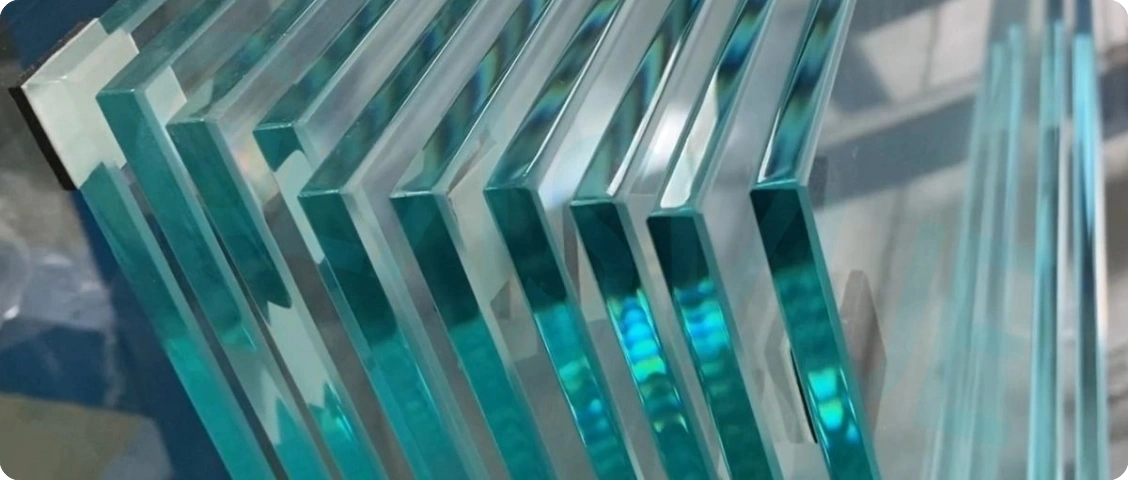

Tempered Glass (Toughened Glass)
- Manufacturing Process and Properties
Tempered glass is made by heating it up high and cooling it fast. This creates a strong surface. It’s a lot tougher than regular glass and can take bending. It handles temperature changes up to 250°C. Its impact resistance is 3–5 times better than standard glass.
- Typical Applications and Limitations
Tempered glass shows up in windows, doors, building fronts, shower stalls, furniture tops. But once it’s tempered, you can’t cut or drill it without it breaking apart. It’s great for blunt hits. Still, sharp things might crack it.
At the same time, tempered glass has the risk of self-explosion and the occurrence of stress spots.
Laminated Glass
- Composition with PVB or SGP Interlayers
Laminated glass has a tough layer, like PVB or SGP, between two glass sheets. These can be regular or tempered glass. Laminated glass stops broken glass from spreading out. This makes it perfect for places that need safe, sturdy glass.
Generally speaking, SGP has stronger impact resistance than PVB. Therefore, in most ordinary scenarios, PVB laminated glass is suitable for shatterproof glass. SGP laminated glass is only applicable in scenarios with higher protection requirements or where there are demands for the support of the glass. The film of laminated glass has a damping effect on sound waves, especially low-frequency noise. Therefore, laminated glass not only offers safety but also provides a certain degree of sound insulation effect. If a dedicated sound insulation pvb is used, the sound insulation effect will be even stronger.
Moreover, both PVB and SGP can absorb ultraviolet rays, so this laminated glass can also prevent ultraviolet rays from causing damage to indoor decorations and furniture
Safety Performance Comparison
Impact Resistance
- Shock Absorption and Fragment Retention
Both tempered and laminated glass are built to take hard knocks. They stop forceful break-ins. Laminated glass is better at keeping broken pieces together. Its sticky middle layer holds shards tight.
Tempered glass, on the other hand, has extremely strong impact resistance and is not easily broken by external forces
- Suitable Standards and Certifications
Shatterproof glass has to follow global rules, like ANSI Z97.1 in the USA, AS/NZS 2008:1996 in the Australia, EN 12600 in Europe, and GB/T9963 in China. These make sure the glass is safe for buildings or transport systems.
Breakage Behavior

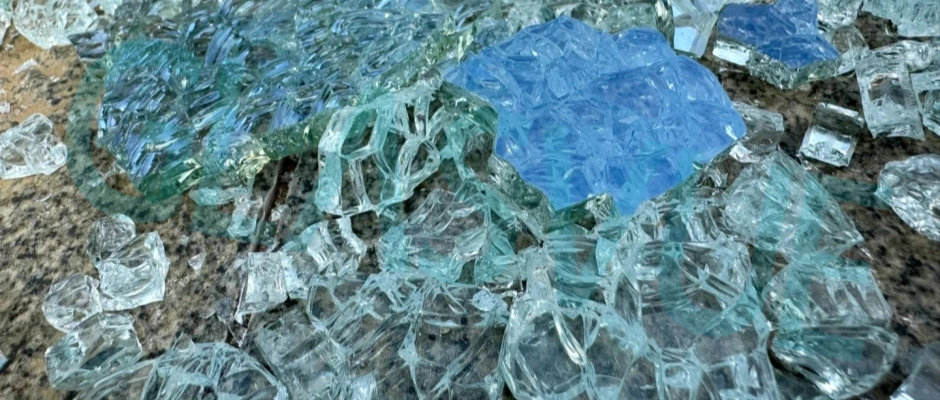

- Cube-Shaped Breakage of Tempered Glass
When tempered glass breaks under big force, it turns into small, cube-like bits. These tiny pieces are safer than sharp shards from regular glass.
- Spider-Web Cracking of Laminated Glass
Laminated glass makes a spider-web pattern when it breaks. Its inner layer keeps it together. This stops it from falling apart right away. You can still see through it a little.
Functional Benefits Beyond Safety
Acoustic Insulation
- Sound Transmission Loss (STL) Performance in dB
The PVB layer in laminated shatterproof glass cuts down noise. It soaks up sound waves, especially medium and low ones. This makes it awesome at blocking sounds, measured in decibels.
- Ideal for Urban and Commercial Settings
Laminated glass is great for city homes near busy roads or airports. He has a significant weakening effect on these low-frequency noises.
Thermal Control and Energy Efficiency
Laminated glass can be made by using low-e coating or by adding a hollow structure to produce laminated insulating glass. This can reduce the U value of the glass.This means better heat control. It saves energy.
Using tinted glass or colored films cuts heat gain. This lowers cooling costs in warm weather.
UV Protection and Interior Preservation
Shatterproof glass with laminated structure blocks over 99% of UV rays. This keeps furniture and decor from fading. It also helps indoor air stay clean by cutting down on chemical reactions from UV light.
Glasvue’s Safety Glass Solutions
Shatterproof Glass
Designed with a professional structure of 8mm tempered glass + 1.52mm SGP interlayer + 8mm tempered glass, this configuration delivers outstanding safety and load-bearing performance. It is particularly well-suited for skylights, balustrades and other high-security building applications.
Hurricane Resistant Glass
The composite design of 8mm tempered glass + 12A + 6mm clear glass + 0.76mm PVB + 6mm clear glass is engineered specifically to withstand hurricanes and other extreme weather conditions. The tempered glass layer delivers high impact resistance, while the PVB interlayer ensures the glass remains intact under strong winds and flying debris, preventing shattering or detachment and safeguarding both buildings and occupants.
At the same time, the insulated air gap significantly enhances sound insulation and thermal performance, maintaining a comfortable indoor environment even during severe weather.
Glasvue hurricane-resistant glass is widely used in coastal high-rise buildings, villas, public facilities, and critical protection areas, providing strong, reliable, and long-lasting all-round safety protection.
Bullet Resistant Glass
Glasvue features an advanced composite structure of three layers of high-strength tempered glass + two layers of PC interlayer, creating professional-grade bullet-resistant glass. The tempered glass provides exceptional impact resistance, while the PC interlayers offer excellent toughness and energy absorption. Even under high-velocity impacts or firearm attacks, this glass effectively prevents penetration while maintaining overall structural integrity.
This glass solution is widely used in government institutions, financial centres, embassies, luxury villas, and other high-security applications, providing reliable protection for buildings and occupants.
Production Equipment and Manufacturing Advantages

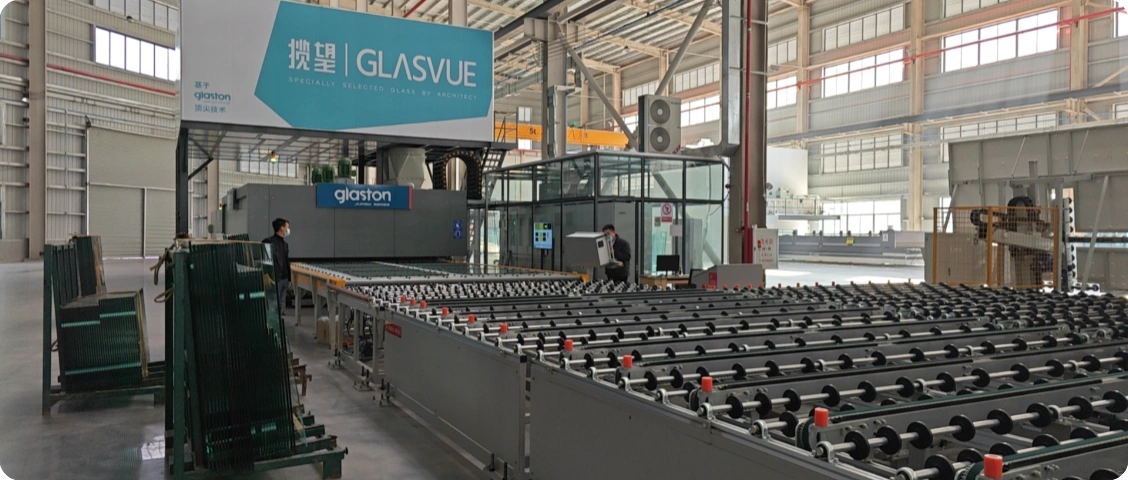

Glaston Tempering Furnaces
Uniform heating: The dual-chamber design combined with forced convection heating ensures more uniform heating of the glass, avoids excessive local stress, improves tempering quality, and reduces the rate of defective products.
High-speed production: Fully automatic control combined with dual-chamber continuous operation can significantly enhance production efficiency and is suitable for large-scale processing demands.

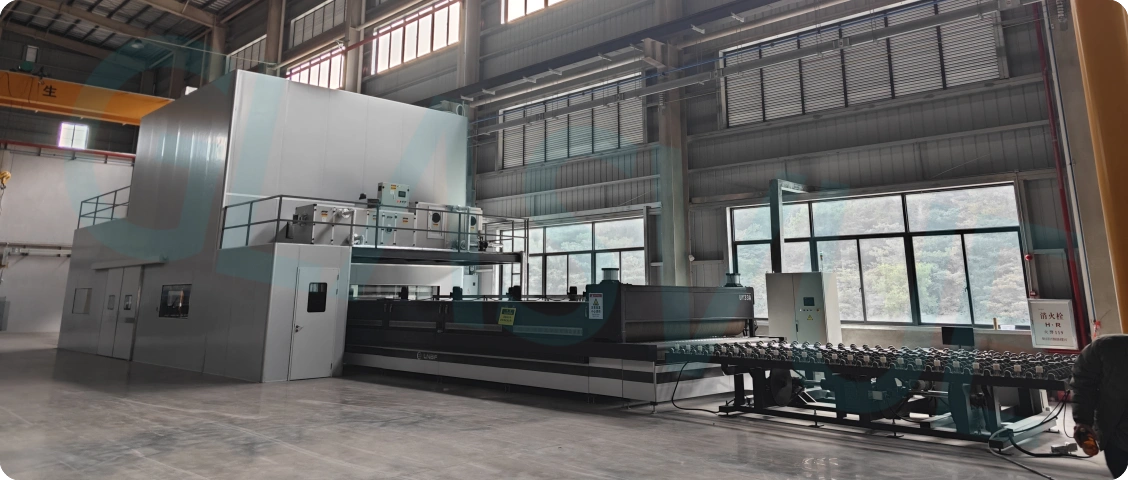

LNBF fully automatic laminated glass production line
The LNBF fully automatic laminated glass production line realizes an integrated automatic production process from glass cleaning, PVB/SGP coating to lamination and hot pressing.
High precision: Precisely control the thickness of the adhesive film and the lamination pressure to ensure uniform bonding between glass layers.
Stable quality: Automated control reduces human errors, enhancing the consistency and reliability of finished products.
Strict Quality Control and International Standard Compliance
Every Glasvue panel is checked to meet ANSI, EN, and GB standards. This makes sure our products are strong and reliable. Clients worldwide trust our safe shatterproof glass.
Glass Size and Thickness Capabilities
| PRODUCTION CAPABILITIES | ||||
| Tempering | Max.Length | Max.Width | Thickness | Surface Stress |
| Heat-Stregthened Glass | 6,000mm | 3,300mm | 4-25mm | 70MPa |
| Tempered Glass | 6,000mm | 3,300mm | 4-25mm | 120MPa |
| Heat Soak Test | 6,000mm | 3,300mm | 4-25mm | |
| Laminating | Max.Length | Max.Width | Special Laminations | Special Laminations |
| Processing Range | 6,000mm | 3,300mm | SentryGlas®, PVB, TPU、EVA、Special Interlayers | Metal, Stone, Projection Foils, Function Elements, Such as Fasteners |
How to Choose the Right Type for Your Project
Evaluate Risk Factors and Environmental Conditions
Tall buildings facing strong winds might need tempered glass on the outside. Adding laminated layers inside gives extra safety against breaks or earthquakes.
Align with Regulatory Requirements
Make sure the glass follows local safety rules. This includes spots like doors below 1500 mm, bank security, or city noise laws.
Balance Performance with Budget and Aesthetics
Laminated glass gives great safety and sound-blocking. But it costs more. Tempered glass might work for less important spots, like indoor dividers. It saves money and still looks good.
Conclusion: Make the Safe Choice with Glasvue
Choosing shatterproof glass, like tempered or laminated types, brings safety and peace of mind. Whether you need impact resistance, quiet spaces, or protection from blasts, Glasvue’s shatterproof glass delivers strong performance. It works for homes, offices, transport hubs, and more.
