In today’s busy cities, noise pollution is a growing issue for homeowners, architects, and builders. The constant buzz of traffic, construction clatter, or neighborhood chatter can disturb peace and focus. Soundproof glass offers a practical solution, blocking unwanted noise while keeping the beauty and utility of regular windows. At GLASVUE, a trusted name with 29 years of expertise in crafting high-quality glass, we provide innovative soundproof glass solutions to create calm and cozy spaces. This detailed guide explains how soundproof glass functions, its core principles, and why GLASVUE’s custom products shine in the industry.
Understanding How Sound Moves Through Glass

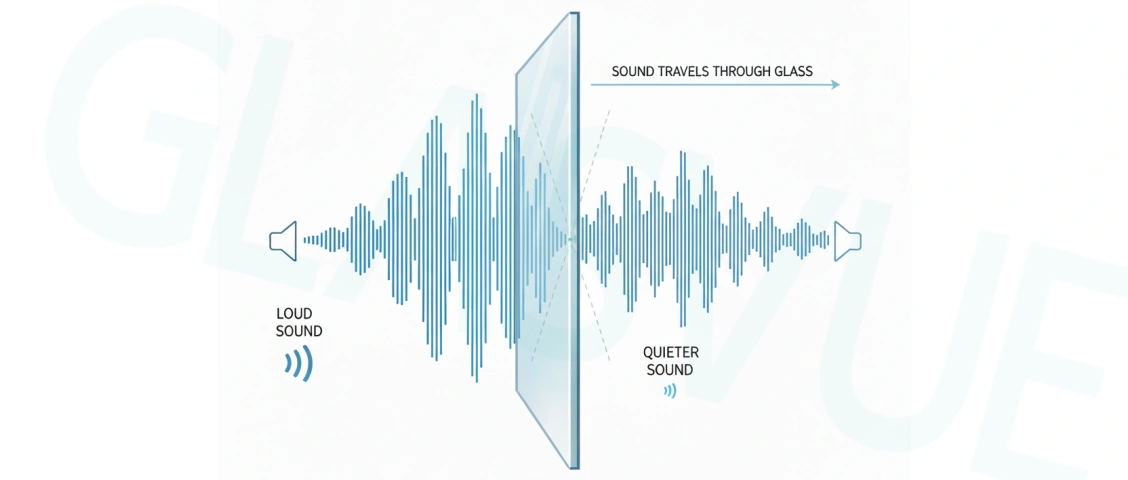

To grasp how soundproof glass performs, it’s helpful to know how sound travels. Sound moves as vibrations in the air. When these vibrations hit a glass surface, three things happen: some bounce back, some get soaked up, and some pass through.

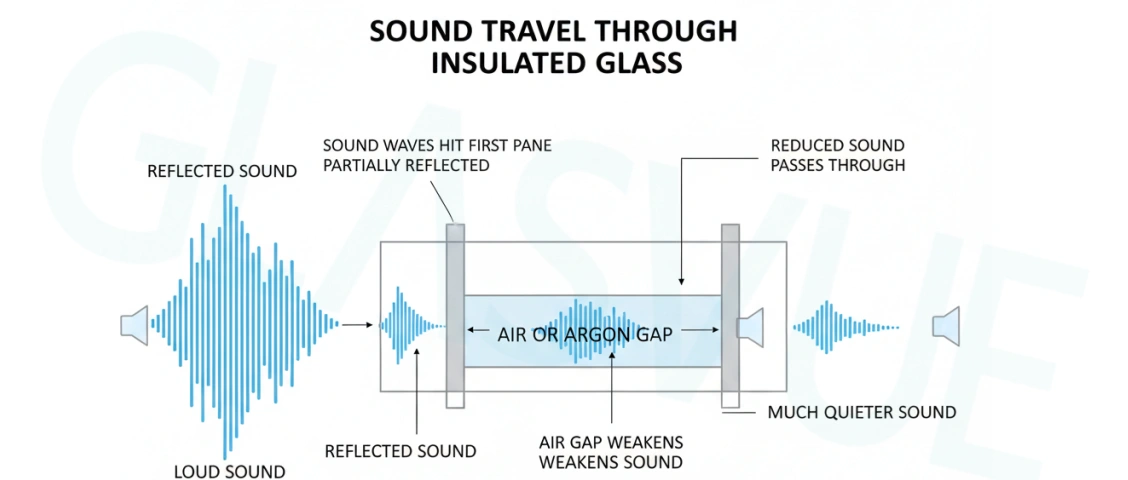

When sound waves meet insulated or laminated glass, the process unfolds step by step:
- Step 1: Sound Waves Hit the Glass SurfaceGlass is dense, so it resists air vibrations. This causes part of the sound, especially sharp noises like shouts or bird chirps, to bounce back. Smooth, sturdy glass surfaces boost this reflection, forming an early shield.
- Step 2: Some Sound Enters and VibratesA portion of the sound sneaks into the glass, making it shake. Thinner or basic glass lets more sound slip through. However, advanced designs reduce this effect.
- Step 3: Sound Gets Stopped by LayersIn insulated glass, an air or argon-filled gap breaks the sound’s path. This stops the glass panes from shaking together, a process called decoupling. In laminated glass, a PVB (polyvinyl butyral) layer soaks up vibrations, especially deeper sounds like car rumbles. It turns sound energy into heat.
- Step 4: Leftover Sound WeakensUsing glass panes of different thicknesses avoids harmful vibrations. Multi-layered setups scatter sound waves multiple times. As a result, the noise that gets through is much quieter.
This step-by-step process can cut noise by 30–45 dB, depending on the design. It makes soundproof glass perfect for quiet spaces like homes, offices, or clinics.
What Is Soundproof Glass?
Definition and Purpose
Soundproof glass, also called acoustic or noise-reducing glass, is built to block sound while staying clear and strong. It doesn’t stop all noise but greatly lowers it, creating peaceful indoor spaces. Its main goal is to improve comfort in loud areas, like city apartments near busy roads or offices in lively districts. Experts measure its performance with the Weighted Sound Reduction Index (Rw) or Sound Transmission Class (STC). Higher numbers mean better noise-blocking. For example, regular single-pane glass has an Rw of 28–30 dB. Advanced soundproof glass can reach 42–45 dB or higher.
How It Differs from Regular Glass
Regular single-pane glass lets sound pass easily because it’s thin and uniform. Soundproof glass, on the other hand, uses multiple layers, air gaps, or special materials to tackle a wide range of sounds. It keeps light and views clear while offering better insulation. This makes it a top choice for modern buildings.
How Soundproof Glass Works
Decoupling Principle
Insulated glass achieves its noise-blocking magic by sandwiching air, argon, vacuum spaces, or even thin films between layers of panes. Each of these fillers changes how fast sound waves travel and how they bump up against resistance, leading to bounces, bends, and a bit of soaking up along the way. Bit by bit, that cuts the energy down, so less racket makes it inside. Think of this decoupling as a soft buffer zone—it grabs the sound’s punch and spreads it out thin. But here’s a catch: if the seal isn’t airtight, dampness can sneak into that empty space and turn it into a sneaky sound highway. That’s why the best soundproof setups go for two layers of protection, say butyl rubber plus a solid structural silicone, to keep things locked tight for years.
Damping Effect
Ever wonder why some materials just seem to hush things up without a fuss? That’s damping at work—it grabs those pesky vibrations and quietly turns them into a touch of warmth. Laminated glass shines here thanks to its PVB interlayer, which really handles those mid-to-low tones (think 80–1000 Hz) like a pro. Once the shakes hit the PVB, they lose steam fast, dodging that whole in-sync jiggle. Swap in acoustic PVB, and you’re looking at an extra 8–12 dB of quiet—solid gains without bulking up the pane.
Resonance Effect
Now, resonance? That’s the troublemaker that sneaks in when a sound’s pitch lines up just right with the glass’s own hum. Suddenly, everything’s rattling harder, and more noise crashes the party. Stack up identical thicknesses in an insulated unit, and you’ve got real headaches around 80–400 Hz. The fix is simple: mix it up with varying depths, like 5mm on one side, a 12mm air pocket, then 8mm on the other. Layer on more panes, and the waves just keep scattering, evening out the quiet across the board.
Ways to Boost Glass Structure for Better Noise Blocking
To improve soundproofing:
- Use thicker glass to block low sounds better.
- Set cavity gaps at 12–16mm for stronger decoupling.
- Incorporate PVB or acoustic PVB to amp up the damping action against those sound waves.
- Choose uneven thickness designs to avoid resonance.
These changes can lift Rw from 30 dB (basic insulated glass) to over 42 dB in vacuum or hybrid laminated-insulated setups.
GLASVUE Soundproof Glass Solutions
Drawing on 29 years in the game, GLASVUE rolls out a range of soundproof glass options tailored to whatever your building calls for. We mix and match insulated and laminated types, tweaking spacers—whether aluminum or those warmer-edge ones—and gas pockets to nail top-notch quiet. Our cutting-edge double-seal approach locks in durability over time, and every piece meets the toughest standards out there, fitting right into homes, offices, public spots, or fancy commercial builds.

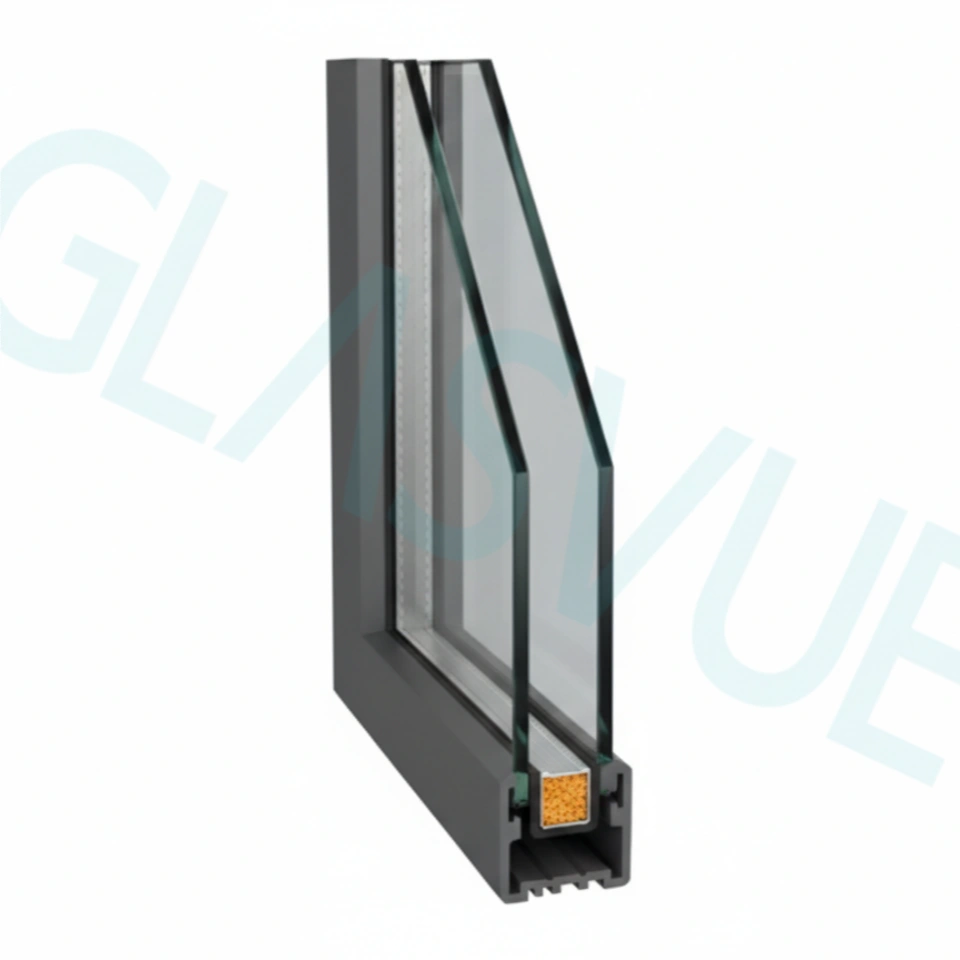

Basic Sound Insulation: 6+12A+8 Insulated Glass
Features: Uneven panes stop resonance. A 12mm argon-filled gap enhances decoupling. Applications: Great for homes, balancing cost and performance.

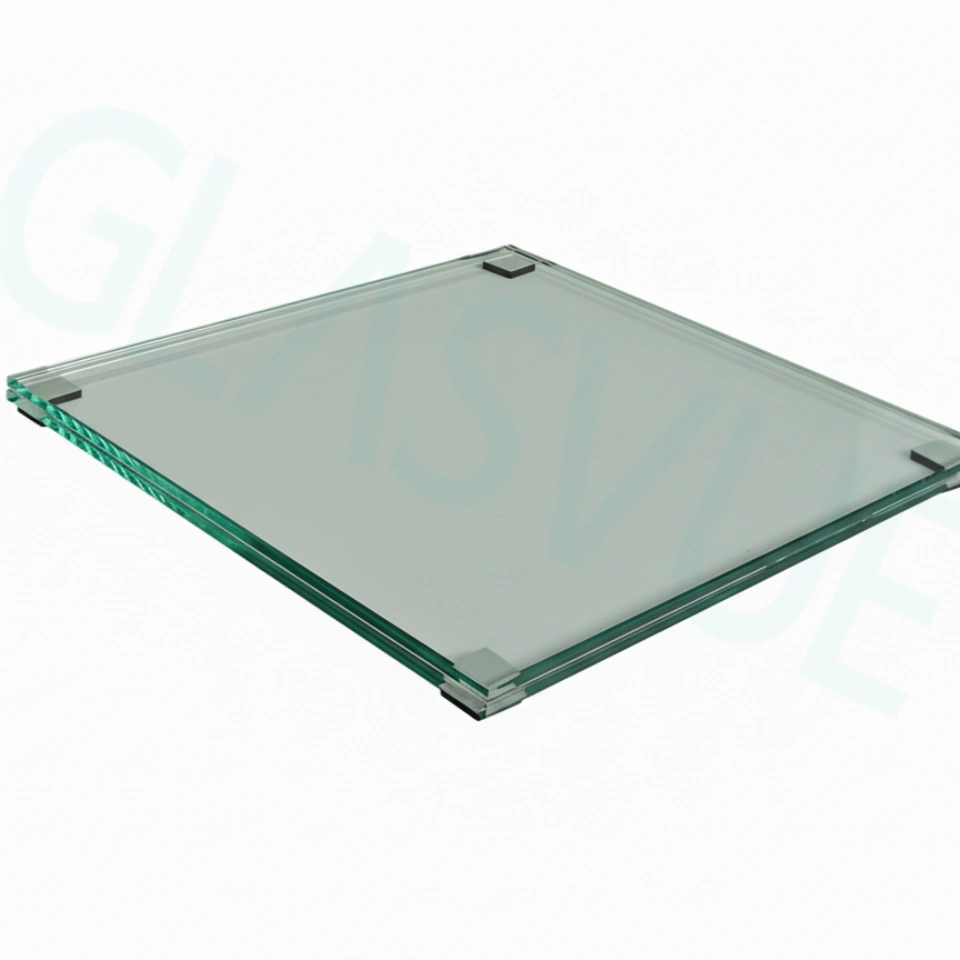

Balancing Safety and Sound Insulation: 6+0.76 Acoustic PVB+6 Laminated Glass
Features: Beyond nailing low-frequency rumbles, the acoustic PVB interlayer steps up for mid-range sounds too, while keeping shards in place if things break—plus it cuts UV exposure. It’s slimmer than insulated versions overall. Applications: A smart pick for spots where you can’t afford extra bulk in the glass.
Advanced Sound Insulation: 6+12A+6+0.76 Acoustic PVB+8
Features: Combines insulated gaps and laminated damping to tackle multiple sound frequencies. Applications: Perfect for loud areas, like homes near highways or airports.

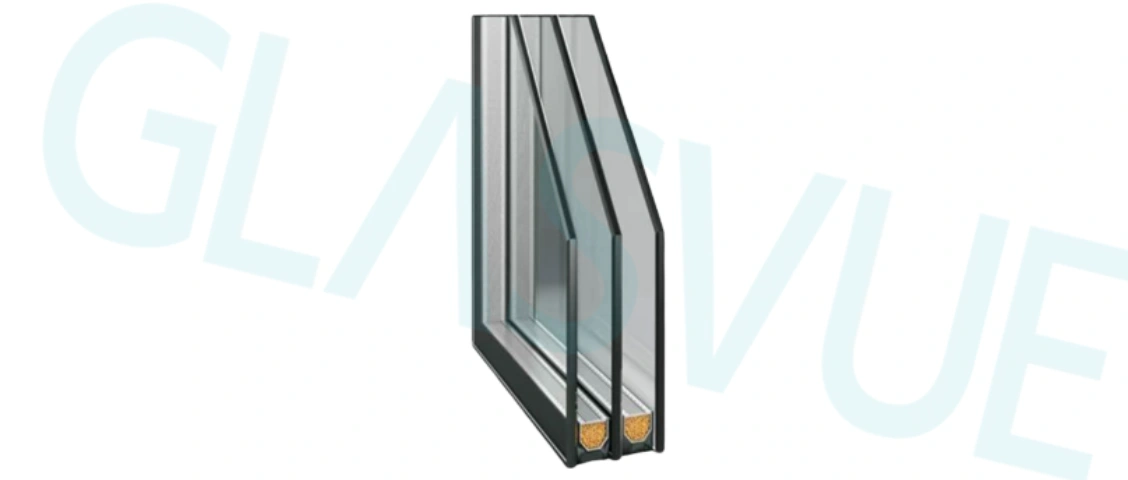

Advanced Energy + Sound Insulation: 6+12A+8+8A+10 Multi-Cavity
Features: Triple-pane design with dual gaps and Low-E coating. It excels in heat insulation (lower U-value) and noise reduction (Rw ≥ 42 dB). Applications: Suited for eco-friendly offices or homes in noisy, weather-changing areas.
Why Choose GLASVUE for Soundproof Glass Solutions
Commitment to Quality

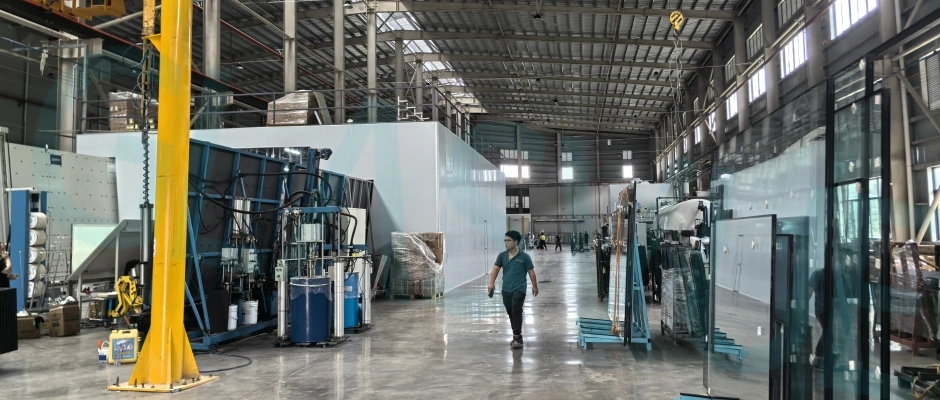

GLASVUE maintains high standards with automated production, from bending spacers to filling desiccants. We use infrared tools to check argon levels (>85%). Our 40-acre facility ensures steady output. Certifications like CCC, AS/NZS 2208, and AS 4666 back our reliability.
Customization Options
We tailor solutions to fit your noise and design needs. Options include uneven thicknesses, argon-filled gaps, and acoustic PVB for targeted sound control.
Comprehensive Glass Solutions
Beyond soundproofing, GLASVUE offers Low-E for energy savings, laminated glass for safety, and tempered glass for strength. Our work on projects like Foshan West Station and Guangfo New World shows our versatility.
In summary, soundproof glass turns noisy spaces into calm retreats using smart techniques like decoupling and damping. GLASVUE delivers solutions that blend function, style, and eco-friendliness. Reach out today to explore how we can help your project.
FAQs
Q: How much noise can GLASVUE soundproof glass block?
A: Our glass reduces noise by 30–45 dB, depending on the setup. For instance, our hybrid solutions achieve Rw values of 38–42 dB. They effectively quiet traffic and city sounds.
Q: Does soundproof glass save energy too?
A: Yes. GLASVUE’s products often include Low-E coatings and argon-filled gaps. These cut U-values by up to 50%, saving energy while blocking noise.
Q: Is soundproof glass good for all weather conditions?
A: Definitely. Our multi-cavity designs provide heat insulation and noise reduction. They work well in cold winters, hot summers, or changing climates.
